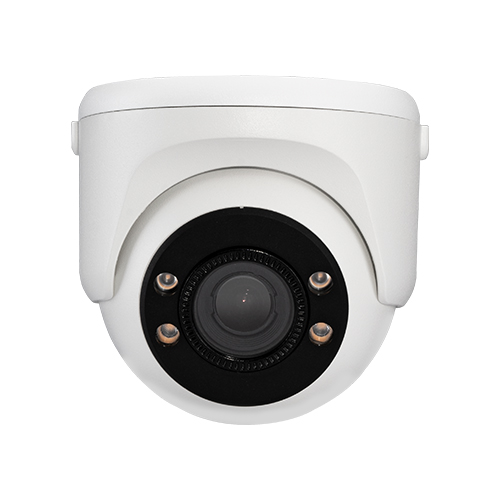

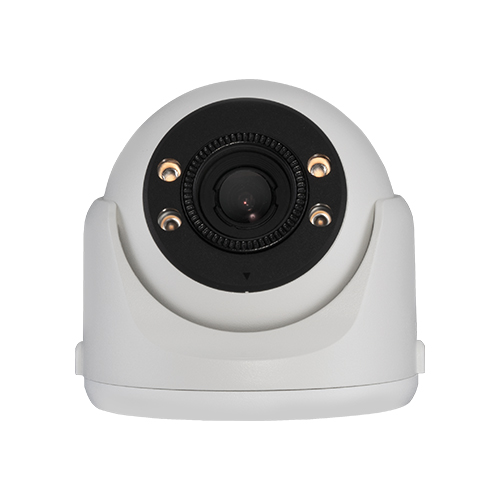

EL-855D48I-S7-S
- Deskripsi
Deskripsi
ZKBio Sense Entry Series IP Camera adalah solusi pengawasan video cerdas berbasis algoritma Deep-Learning dan Computer Vision, mampu mendeteksi manusia dengan akurat sekaligus menyaring objek tak relevan untuk mengurangi alarm palsu. Dengan harga terjangkau namun tetap efisien dan aman, kamera ini ideal untuk berbagai kebutuhan seperti sekolah, kantor, kawasan industri, perumahan, hingga keamanan publik.
Parameters:
| Spesifikasi | Detail |
|---|---|
| Model | EL-855D48I-S7-S |
| Image Sensor | 1/2.7” 5 MP CMOS |
| Max. Resolution | 2592 × 1944 |
| ROM / RAM | 128 MB / 128 MB |
| Scanning System | Progressive Scan |
| Shutter Speed | 1/5 s – 1/100,000 s |
| Min. Illumination | 0.01Lux @F1.4–2.8 (Color, AGC on); 0 lux (IR on, B/W) |
| S/N Ratio | ≥ 50 dB |
| IR Range | 80 m |
| IR Control | Auto / Manual |
| IR LEDs | 4 pcs |
| Smart IR | Support |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° |
| TV System | PAL / NTSC |
| Image Settings | Brightness, Contrast, Saturation, Hue, Sharpness, AGC, White Balance, Gamma, BLC (via platform/web) |
| Software Reset Default | Support |
| General Functions | Heartbeat, Mirror, Privacy Mask, Log, Password Reset |
| Lens Type | Motorized Varifocal, M22 Mount, Board-in |
| Focal Length | 2.8 – 12 mm |
| Max. Aperture | F1.4 – 2.8 |
| Optical Zoom | 4X |
| Field of View (FOV) | H: 108°–33°; V: 57°–18°; D: 130°–38° |
| Close Focus Distance | 2 m |
| DORI Distance (Wide) | Detect: 45.8 m; Observe: 19.6 m; Recognize: 11.0 m; Identify: 6.0 m |
| DORI Distance (Tele) | Detect: 125.6 m; Observe: 57.7 m; Recognize: 26.3 m; Identify: 12.5 m |
| Video Compression | H.265 / H.264 |
| Resolution Options | 5MP / 4MP / 3MP / 1080P / D1 / VGA / Q720 |
| Frame Rate | Main: 25fps (PAL) / 30fps (NTSC); Sub: 25/30fps (lower res) |
| Streams | Dual Stream |
| Bit Rate Control | CBR / VBR (192kbps – 8Mbps) |
| Day/Night | Auto (ICR) / Color / B&W |
| BLC / HLC / WDR | Support / Support / TWDR |
| Scene Self-Adaptation | Support |
| White Balance | Auto, Custom, Locked, Incandescent, Warm, Natural, Fluorescent |
| Gain Control | Low – High (5 levels) |
| Noise Reduction | 2D / 3D NR |
| Motion Detection | Smart / Ordinary (4 areas) |
| ROI | 4 areas, Level 1–6 |
| Mirror / Rotation | Support (0°/90°/180°/270°; H/V) |
| Privacy Masking | 4 areas |
| Corridor Mode / Digital Zoom / Anti-Flicker | Support |
| Audio Input / Output | 1× RCA In / 1× RCA Out |
| Audio Compression | G.711 ulaw |
| Audio Sampling Rate | 8–48 kHz |
| Audio Bit Rate | 64 kbps |
| IVA (Analytics) | Line Crossing, Area Detection, Smart Motion Detection (human classification) |
| Intelligent Search | Fast retrieval by human classification |
| Alarms | Events: disconnection, IP conflict, illegal access, tampering, motion; Smart: Line crossing, area detection, SMD |
| Alarm Linkage | Notify center, recording, snapshot, email |
| Network | 1× RJ45 10/100M; ONVIF Profile S/T; up to 15 channels live view |
| Cyber Security | Video/config/firmware encryption, TLS, HTTPS, IP filtering, logs, secure boot |
| Protocols | TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SNMP, WebSocket |
| Users | Up to 256 (Admin, Operator, Guest) |
| Network Storage | FTP |
| Web Browsers | IE, Edge, Firefox, Chrome, Safari |
| Software | AntarVis 2.0, ZKBioSecurity IVS, ZKBioAccess IVS, ZKBio CVSecurity, ZKBio CVAccess |
| Mobile App | AntarView Pro+ (iOS & Android) |
| Power Supply | PoE (IEEE802.3af, Class 3) / DC 12V ±10% |
| Power Consumption | ≤ 3W (DC); 4.5W (PoE) |
| Casing | Aluminium Alloy |
| Dimensions | 102 × 93.2 mm |
| Weight | Net: 0.69 kg; Gross: 0.55 kg |
| Operating Temp. | –30°C ~ +60°C |
| Humidity | ≤ 95% (non-condensing) |
| Ingress Protection | IP67 |
| Certifications | ISO9001, ISO14001, CE, FCC |
