Mars-S100 Series
- Deskripsi
Deskripsi

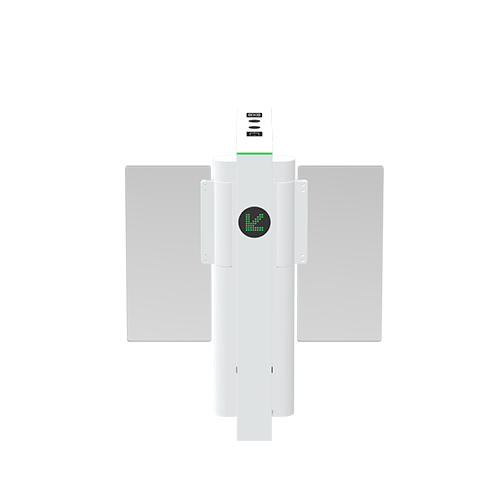

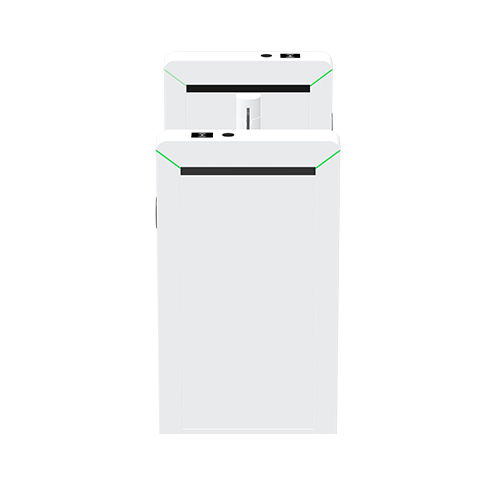

ZKTeco Mars-S100 adalah swing barrier turnstile berbahan baja canai dingin dengan desain modern, cocok untuk area dengan lalu lintas tinggi seperti terminal, stadion, dan instansi pemerintah. Dilengkapi empat pasang sensor inframerah untuk menghitung orang secara akurat dan mencegah tabrakan, turnstile ini juga memiliki mekanisme pengaman yang melindungi perangkat dari kerusakan saat dipaksa. Sistem dapat terintegrasi dengan kontrol akses (sidik jari, wajah, telapak tangan, kartu RFID, atau kode QR), dengan fitur keselamatan seperti pembukaan otomatis saat listrik padam atau alarm kebakaran untuk memastikan evakuasi darurat tetap lancar.
Spesifikasi:
| Spesifikasi | Detail |
|---|---|
| Model Name | Mars-S100 / Mars-S120 |
| Visual Indicator | Steady Green = Normal Use; Steady Red = Door Closed |
| Audio Indicator | Internal buzzer |
| Lane Type | Mars-S100: Single Lane; Mars-S120: Dual Lane (2 single-core + 1 dual-core) |
| Lane Width | 660mm (optional: 900mm) |
| Barrier Movement Type | Swing |
| Motor | DC brushless motor |
| Movement Speed | 0.8s per movement (open/close) |
| Movement Accuracy | ± 2 Degrees |
| Clutch | Mechanical clutch (anti-panic / anti-collision) |
| Lid Material | Cold-rolled steel SPCC (GB700) (optional: SUS304 stainless steel) |
| Authentication Options (Lid) | Under-mount: Fingerprint / RFID / Palm / QR Code; Surface-mount: Face Recognition |
| Chassis Material | Cold-rolled steel SPCC (GB700) (T=1.2mm) (optional: SUS304 stainless steel) |
| Chassis Color | White (standard) / Silver-gray (optional) |
| Barrier Material | Acrylic 295×630mm (standard) / Acrylic 425×630mm (optional) |
| IR Sensors | 4 pairs (standard, high & low position) |
| Motherboard Functions | System config, access mode, anti-pinch, anti-tailgate, etc. |
| Motherboard Communication | Fire alarm port (relay) ×1, RS-485 port ×1 |
| Controller | C3-200 & InBio260 Pro (recommended); others optional |
| Credential Options | RFID (ProID Series, KR Series), Fingerprint (FR1200/FR1500), Face (ProFace X, G4 Pro), Palm (Omni AC30) |
| Flow Rate | QR/RFID: 30 ppl/min; Fingerprint/Palm: 20 ppl/min; Face: 15 ppl/min |
| Barrier Width | 660mm (standard); 900mm (optional for luggage/trolley) |
| Power Supply | 110V/220V AC @ 50–60 Hz; DC 24V |
| Power Rating | 22VA (Standby), 50VA (Operation) |
| Fire Signal | Input for voltage-free contact |
| MTTR | < 60 minutes |
| Noise Level | < 60 dB |
| MCBF | 5 million |
| Gross Weight | Mars-S100: 32kg (±5kg, 2 boxes); Mars-S120: 40kg (±5kg, 1 box) |
| Net Weight | Mars-S100: 25kg (±5kg, 2 boxes); Mars-S120: 30kg (±5kg, 1 box) |
| Dimensions (L×W×H) | 600 × 120 × 1040 mm |
| Operating Temperature | -20°C to 70°C |
| Operating Humidity | 0% – 85% RH (Non-condensing) |
| Certifications | CE, FCC, ISO9001 |
| Supported Software | ZKBio CVAccess / ZKBio CVSecurity (depends on controller) |
| Safety Features | Fire alarm fail-safe, automatic barrier open during power loss |
| Security Features | Infrared Anti-Clamping, Mechanical Anti-Clamping, Power-Off Fail-Safe, Emergency Escape |
| Product Delivery | Pre-assembled |
| Application Environment | Indoor |
| Site Preparation | Flat & level finished floor (optional base plate for unfinished floor) |
| Packing Dimensions (L×W×H) | Mars-S100: 762×362×1215 mm (2 boxes); Mars-S120: 762×362×1215 mm (1 box) |
| Security Level | Low |
| Emergency Mode | Barrier opens automatically |
| Packing Material | Wooden (standard) |
