SL02-LH190H
- Deskripsi
Deskripsi

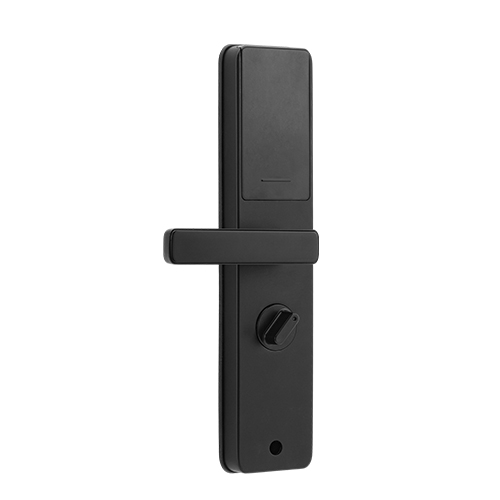

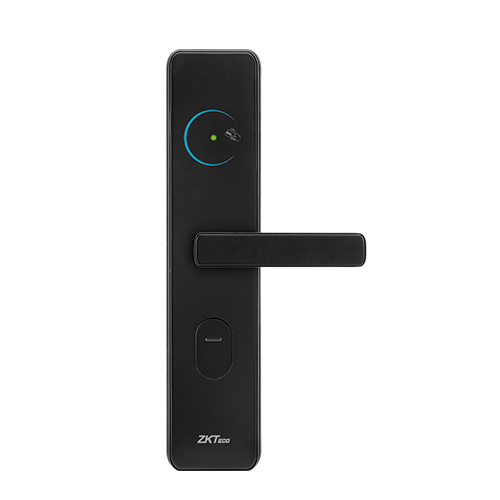

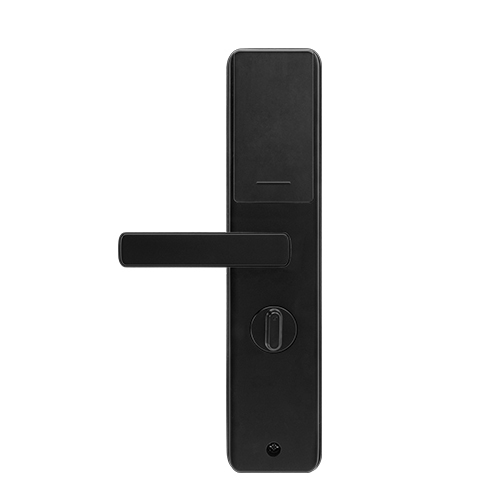

SL02-LH190H adalah smart hotel lock dari ZKTeco yang memberikan pengalaman praktis tanpa kunci bagi tamu hotel dan resort untuk mengakses kamar mereka. Manajer hotel dapat dengan mudah menonaktifkan kartu yang hilang serta mengakses laporan seperti Unlock Log Report, Lost Card List, dan Issued Card Report, sehingga dapat mencegah akses tidak sah dan merespons cepat potensi pelanggaran keamanan.
Kunci ini menggunakan otentikasi IC card dan kompatibel dengan ZKBio CVSecurity SmartLock, solusi manajemen smart lock berbasis web. Integrasi kartu yang mulus ini mendukung operasional hotel dengan tambahan fungsi kontrol akses dan kontrol lift, sementara semua modul ZKBio CVSecurity tersedia sebagai fitur opsional sesuai kebutuhan hotel.
Parameters :
| Specification | Details |
|---|---|
| Model | SL02-LH190H |
| Housing Material | Aluminum Alloy |
| Front Panel | ABS |
| Color | Black |
| Mortise Lock Type | American Standard |
| Backset | 62 mm (2-7/16″) |
| Axe Distance | Lever to Cylinder: 95 mm (3-3/4″) Lever to Thumbturn: 62 mm (2-7/16″) |
| Square Spindle | 8 × 8 mm square |
| Faceplate (H×W) | 26 × 204 mm (1-1/41″ × 8-1/32″), squared standard |
| Built-in Detectors | Latch Bolt, Deadbolt, Cylinder |
| Unlocking Methods | Card, Mechanical Key Backup |
| Capacity | Event Log: 500 entries (Auto-overwrite) |
| Card Reader | S50/S70 IC Card @13.56 MHz |
| NFC Supported | Yes (ISO/IEC 14443 A) |
| Encoder | CR60W |
| Audio Prompt Language | English |
| Wireless Communication | Zigbee 3.0 (IEEE 802.15.4) |
| Power Supply | 4 × LR6 AA (Alkaline recommended) |
| Battery Life | ~5 years (based on lab test of 10 unlock operations/day) |
| Supported Software | ZKBio CVSecurity SmartLock |
| Door Type | Swing Mortise Door |
| Door Thickness | 40 – 63 mm (Standard) |
| Door Swing | Right Inward (Standard). For non-standard, specify at purchase |
| Net Weight | 2.3 kg |
| Gross Weight | 2.7 kg |
| Product Dimensions (H×W×T) | Exterior: 330 × 71 × 22 mm Interior: 330 × 71 × 22 mm *Excluding lever height: 41 mm |
| Package Dimensions (L×W×H) | 460 × 240 × 95 mm |
| Operating Temperature | -20°C to 55°C (-4°F to 131°F) |
| Operating Humidity | 5% – 95% RH (non-condensing) |
| Certifications | CE, FCC |
| Package Contents | Front/Rear Trim Washer Lock Body Kit (mortise, strike plate, locking box) Lock Cylinder Kit (2 mechanical keys) Studs & Screws Kit IC Card × 2 Installation Template Installation Guide |
Data Sheet / User Manual
