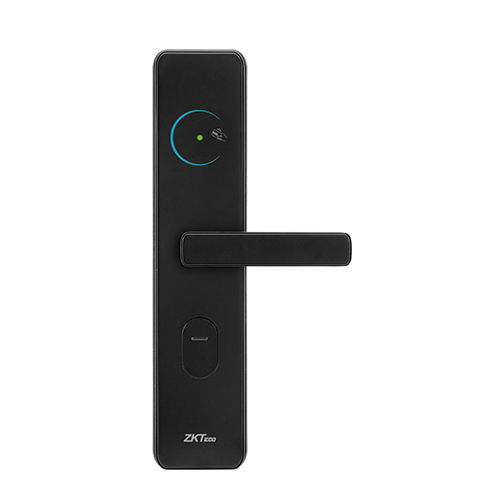

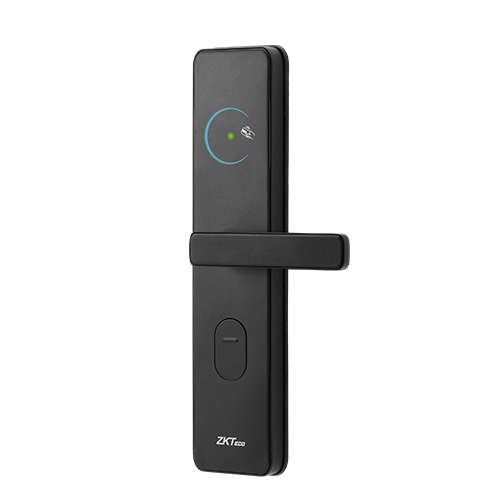

SL02-ZL140H
- Deskripsi
Deskripsi
SL02-ZL140H menawarkan kenyamanan sebagai kunci hotel nirkabel yang mendukung koneksi ke sistem manajemen kunci hotel ZKBio CVSecurity SmartLock. Kunci ini mendukung kontrol jarak jauh, pemantauan status, dan sinkronisasi catatan pembukaan kunci. Pengguna dapat mengakses kontrol pintu maupun sistem kontrol lift dengan kartu Multi-Tech. Produk ini merupakan solusi ideal untuk hotel dan resort pintar.
Parameters :
| Specification | Details |
|---|---|
| Model | SL02-ZL140H |
| Housing Material | Aluminum Alloy |
| Front Panel | ABS |
| Color | Black |
| Mortise Lock Type | American Standard |
| Backset | 62 mm (2-7/16″) |
| Axe Distance | Lever to Cylinder: 95 mm (3-3/4″) Lever to Thumbturn: 62 mm (2-7/16″) |
| Square Spindle | 8 × 8 mm square |
| Faceplate (H×W) | 26 × 204 mm (1-1/41″ × 8-1/32″), squared standard |
| Built-in Detectors | Latch Bolt, Deadbolt, Cylinder |
| Unlocking Methods | Card, Web Application, Mechanical Key Backup |
| Capacity | Event Log: 500 entries (Auto-overwrite) |
| Card Reader | S50/S70 IC Card @13.56 MHz |
| NFC Supported | Yes (ISO/IEC 14443 A) |
| Encoder | D147-H |
| Audio Prompt Language | English |
| Wireless Communication | Zigbee 3.0 (IEEE 802.15.4) |
| Power Supply | 4 × LR6 AA (Alkaline recommended) |
| Battery Life | ~1 year 7 months (based on lab test: 10 daily cycles w/ deadbolt + Zigbee connected) |
| Supported Software | ZKBio CVSecurity SmartLock |
| Door Type | Swing Mortise Door |
| Door Thickness | 40 – 63 mm (Standard) |
| Door Swing | Right Inward (Standard). For non-standard, specify at purchase |
| Net Weight | 2.3 kg |
| Gross Weight | 2.7 kg |
| Product Dimensions (H×W×T) | Exterior: 330 × 71 × 22 mm Interior: 330 × 71 × 22 mm *Excluding lever height: 41 mm |
| Package Dimensions (L×W×H) | 460 × 240 × 95 mm |
| Operating Temperature | -20°C to 55°C (-4°F to 131°F) |
| Operating Humidity | 5% – 95% RH (non-condensing) |
| Certifications | CE, FCC |
| Package Contents | Front/Rear Trim Washer Lock Body Kit (mortise, strike plate, locking box) Lock Cylinder Kit (2 mechanical keys) Studs & Screws Kit IC Card × 2 Installation Template Installation Guide |
