- Deskripsi
Deskripsi

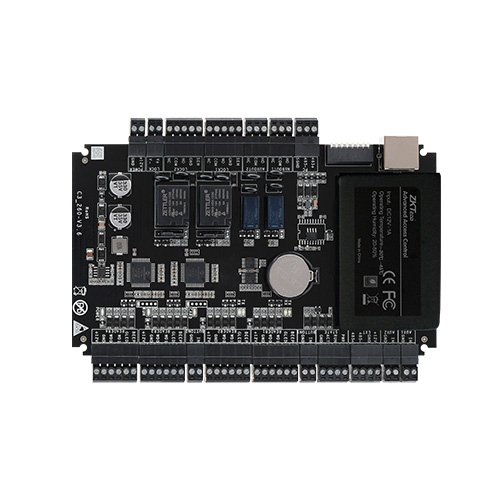

ZKTeco C3 Plus Series adalah controller berbasis IP untuk solusi kontrol akses yang mendukung kartu RFID dan kode QR dinamis, dengan tiga model (C3-100 Plus, C3-200 Plus, C3-400 Plus) yang mampu menangani hingga 100.000 pengguna dan 100.000 transaksi. Dilengkapi antarmuka RS-485 dengan protokol ZKTeco dan OSDP 2.1.7, serta kompatibel dengan pembaca QR (QR50, QR500, QR600) dan pembaca pihak ketiga melalui Wiegand (W26/W34/W66). Seri ini mengutamakan keamanan dengan enkripsi data AES 256-bit, enkripsi komunikasi AES 128-bit, serta dukungan HTTPS/TLS1.2 untuk melindungi komunikasi antara server dan web client.
Parameter
| Spesifikasi | Detail |
|---|---|
| Model | C3-100 Plus / C3-200 Plus / C3-400 Plus |
| Operation System | Linux OS |
| Hardware | CPU: Single Core @ 1.0GHz; RAM: 128MB; ROM: 256MB |
| Authentication Method | Card / Password / QR Code |
| Access Point Capacity | 1 / 2 / 4 Access Points |
| Reader Capacity | C3-100: 2 RS-485 + 2 WiegandC3-200: 4 RS-485 + 4 WiegandC3-400: 8 RS-485 + 4 Wiegand |
| IO Expansion Board | 8 pcs EX0808 (RS-485 connection) |
| User Capacity | 100,000 |
| Card Capacity | 100,000 (1:N) Standard |
| QR Code Capacity | 100,000 (Static/Dynamic QR Code) |
| Transaction Capacity | 500,000 |
| Number of Inputs | C3-100: 1 Exit, 1 Door, 1 AUX (64 with EX0808)C3-200: 2 Exit, 2 Door, 2 AUX (64 with EX0808)C3-400: 4 Exit, 4 Door, 4 AUX (64 with EX0808) |
| Number of Outputs | C3-100: 1 Lock Relay, 1 Aux Relay (64 with EX0808)C3-200: 2 Lock Relay, 2 Aux Relay (64 with EX0808)C3-400: 4 Lock Relay, 4 Aux Relay (64 with EX0808) |
| Max. Card Length | Up to 66 bits |
| QR Code Formats | QR Code, PDF417, Data Matrix, MicroPDF417, Aztec (via SDK); Dynamic QR via ZKBio CVAccess App |
| Communication | C3-100: TCP/IP×1, RS-485×1, Wiegand×2, USB×1, Aux In×1, Aux Out×1, Lock×1, Door×1, Exit×1, Alarm×1C3-200: TCP/IP×1, RS-485×1, Wiegand×4, USB×1, Aux In×2, Aux Out×2, Lock×2, Door×2, Exit×2, Alarm×2C3-400: TCP/IP×1, RS-485×1, Wiegand×4, USB×1, Aux In×4, Aux Out×4, Lock×4, Door×4, Exit×4, Alarm×4 |
| Standard Functions | Webserver, up to 14-digit User ID, Access Levels, Access Groups, Holidays, Anti-passback, Anti-tailgating, Linkage, Global Linkage, Multiple Verification Methods |
| Access Control Interface | Wiegand (Card Reader), RS-485 (Card Reader / QR Code Reader) |
| Power Supply | 9.6V – 14.4V DC |
| Operating Temperature | 0℃ – 45℃ |
| Operating Humidity | 20% – 80% RH (Non-condensing) |
| Dimensions (mm) | C3-100: 175×99×19.3C3-200: 175×99×19.3C3-400: 215.88×99.14×19.3 |
| Gross Weight | C3-100: 0.263 KgC3-200: 0.296 KgC3-400: 0.357 Kg |
| Net Weight | C3-100: 0.158 KgC3-200: 0.190 KgC3-400: 0.252 Kg |
| Supported Software | ZKBio CVAccess |
| Installation | Wall-mount supported, with optional metal enclosure |
| Optional Enclosure | C3-100 / C3-200: 350×90×300 mm, SPCC steel, PSU 110–240V AC → 12V 4A+1A DC, space for backup battery (151×94×65 mm), Gross Weight 3.35 KgC3-400: sama, Gross Weight 3.56 Kg |
| Certifications | ISO14001, ISO9001, CE, FCC, RoHS |
| Factory ID | C3-100: AC02-C11H-U10C3-200: AC02-C12H-U10C3-400: AC02-C14H-U10 |
