- Deskripsi
Deskripsi

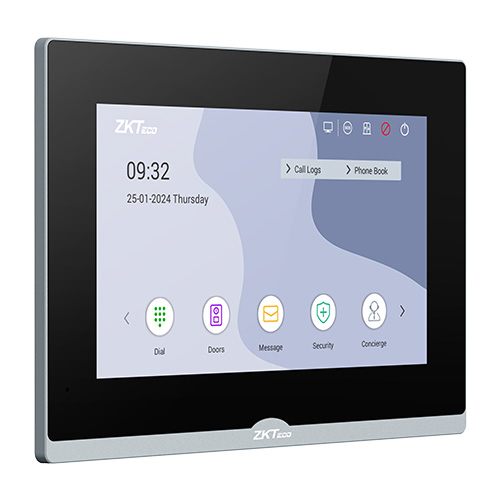

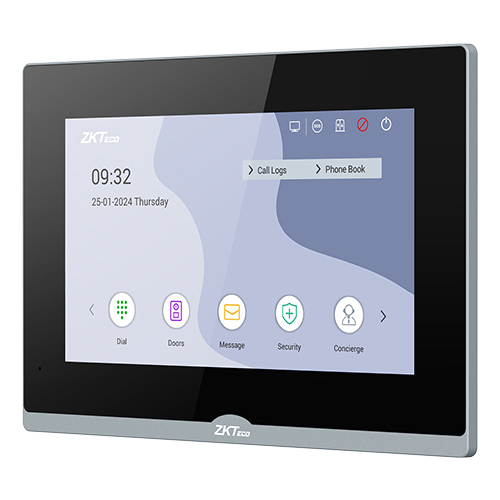

VT07-B 26 LW adalah monitor dalam ruangan video pintar yang menyediakan banyak fungsi, termasuk interkom video bicara dua arah, panggilan darurat, dan alarm keamanan, dll. Ini juga mendukung komunikasi melalui protokol SIP 2.0 dengan telepon IP dan solusi IP-PBX. Ini memungkinkan konstruktor untuk membuat konfigurasi dan instalasi yang mudah.
Parameter :
| PHYSICAL | |
| System | Linux |
| RAM | 128 MB |
| ROM | 128 MB |
| Front Panel | Plastic |
| Power Supply | PoE (802.3af ) or DC 12V/2A |
| Standby Power | 2 W |
| Rated Power | 9 W |
| Ethernet Ports | 2 x RJ45, 10 / 100 Mbps self-adaptive |
| Support Wi-Fi | IEEE 802.11 b / g / n, @ 2.4 GHz |
| TF card slot | 1 (max. 32GB) |
| RS485 | 1 |
| Power Output | 1 (12V/100mA) |
| Doorbell Input | Max. 8 input |
| Alarm Input | Support 8 sensor zones: smoke, gas, PIR, door, window, panic and flood |
| Installation Method | Wall mount (on flat surface) |
| Dimensions (H*W*D) | 195 x 130 x 14.5 mm |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Operating Humidity | 10% to 90% (non-condensing) |
| Display | |
| Display | 7-inch TFT LCD |
| Screen | Capacitive touch screen |
| Resolution | 1024 x 600 |
| AUDIO | |
| Audio Codec | G.711 |
| Echo Cancellation | Support |
| DTMF | RFC2833 |
| Microphone | Built-in microphone |
| Speaker | 8Ω / 1W |
| VIDEO | |
| Video Codec | H.264 |
| NETWORKING | |
| Protocol | SIP 2.0, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP |
User Manual Data Sheet / User Manual :
