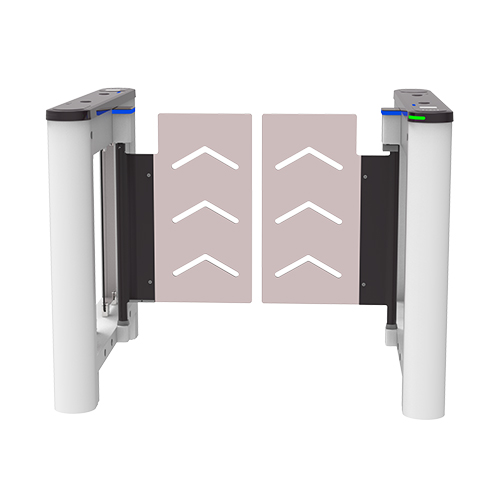

Saturn-S1000 Pro Series

Kategori: Entrance Control, Swing Barrier

Deskripsi

Deskripsi

Saturn-S1000 Pro Series adalah swing barrier cerdas dari ZKTeco yang dirancang untuk manajemen akses pejalan kaki yang aman dan efisien. Perangkat ini mengintegrasikan struktur mekanis, sistem elektronik, kontrol mikroprosesor, serta berbagai teknologi autentikasi dalam satu sistem terpadu. Didukung oleh motor DC brushless berperforma tinggi, sistem ini mampu mengoordinasikan proses autentikasi, indikator arah, dan alarm secara real-time.

Dengan desain yang elegan, kokoh, tahan karat, dan dirancang untuk penggunaan jangka panjang, Saturn-S1000 Pro Series dilengkapi antarmuka listrik standar yang memudahkan integrasi dengan berbagai metode verifikasi, seperti pengenalan wajah, kartu RFID, dan kode QR. Solusi ini memberikan pengalaman akses yang aman, tertib, dan efisien sekaligus mencegah akses tidak sah. Saat terjadi keadaan darurat seperti kebakaran atau listrik padam, barrier akan terbuka secara otomatis dan tetap terbuka untuk mendukung proses evakuasi yang cepat dan aman.

Spesifikasi:

Specification	Details
Model Name	Saturn-S1000 Pro / Saturn-S1200 Pro
Audio Indicator	Internal speaker
Visual Indicator	Top LED indicator: Blue = Door closed / standby; Green = Door opening; Red = Door closing / alarm Swing Barrier LED Indicator: Green = Lane available; Red = Lane unavailable
Display	N/A

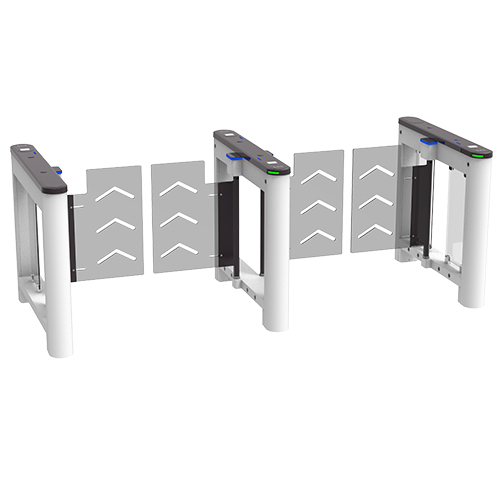

Lane Type	Saturn-S1000 Pro: Single Lane Saturn-S1200 Pro: Dual wings (with Saturn-S1200 Pro)
Lane Width	600–750 mm (Standard; acrylic barrier; adjustable) 1000 mm (Optional; acrylic barrier) 1200 mm (Optional; SUS304 barrier)
Barrier Movement Type	Swing
Motor	DC brushless motor
Movement Speed	Average 1s per movement (Adjustable open/close timing)
Movement Accuracy	N/A
Clutch	N/A
Lid Material	Polycarbonate + 2.5D tempered glass
Lid Options Authentication Methods	Streamlined under-mount options: QR Code / RFID Surface-mount option: Facial Authentication
Chassis Material	Cold-rolled SPCC Steel (GB700) / Polycarbonate (Side Lid)
Chassis Colour	Pearl White (PWH), Space Gray (SGY), Carbon Black (CBK), Bay Blue (BBLE), Mist Brown (MBW)
Barrier Material	Clear acrylic (H × W, 635 × 300 mm) (standard) Tempered glass (H × W, 635 × 425 mm) (optional) For extended lane width of 1200 mm: SUS304 barrier required
IR Sensors	6 pairs (standard); 8 pairs (optional)
Motherboard Function	System configuration, access control
Motherboard Communication	Fire alarm Port (Relay) ×1, RS485 Port ×1
Controller	Not equipped Compatible with C3 series controller / InBio series controller (optional)
Credential Options	Under-mount RFID reader: Pro ID Series, KR Series Under-mount QR Code reader: QR500 Surface-mount facial authentication reader: ProFace X / SpeedFace V5L
Flow Rate	Facial Authentication: 15 passengers/minute QR Code: 30 passengers/minute RFID: 35 passengers/minute
Accessibility	Adult, Children (with care), Disability (with care)
Power Supply	110V / 220V AC @ 50–60Hz
Power Rating	10VA (Standby) 40VA (Operation)
Fire Signal	Input for voltage-free contact
Noise Level	Less than 50 dB
MTTR	Less than 60 minutes
MCBF	5 million
Net Weight	Saturn-S1000 Pro: 50 kg Saturn-S1200 Pro: 30 kg
Dimension (L × W × H)	1200 × 150 × 1020 mm
Dimensions with Packing (L × W × H)	Saturn-S1000 Pro: Carton (standard): 1346 × 720 × 1082 mm (2 boxes); Wooden box (optional): 1300 × 630 × 1222 mm (2 boxes) Saturn-S1200 Pro: Carton (standard): 1346 × 360 × 1082 mm (1 box); Wooden box (optional): 1300 × 315 × 1222 mm (1 box)
Operating Temperature	-30°C to 70°C
Operating Humidity	5% to 90% RH (Non-condensing)
Certifications	CE, FCC
Ingress Protection Rating	IPX4
Supported Software	ZKBio CVAccess / ZKBio CVSecurity (depends on equipped access controller)
Safety Features	Power-off unlock device / Fire alarm active door release
Security Features	Anti-tailgating, anti-pinch
Product Delivery	Pre-assembled for easy installation
Application Environment	Indoor / outdoor (if sheltered)
Site Preparation	Flat and level finished floor (optional base plate for unfinished floors)
Security Level	Middle
Emergency Mode	Swing barrier unlocks automatically
Packing Material	Carton (standard) / Wooden box (optional)
Warranty	1 year

Saturn-S1000 Pro Series
