Deskripsi

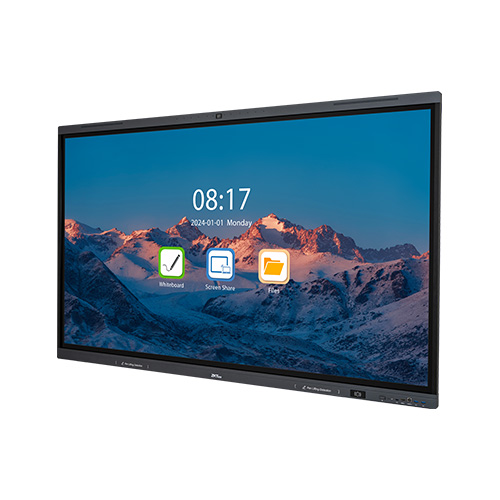

Papan tulis interaktif digital 4K dari ZKTeco dirancang untuk mendorong berbagi pengetahuan inspiratif dalam dunia bisnis dan pendidikan. Solusi rapat terintegrasi pada produk SC02-I565/75/86A menawarkan fitur berbagi layar, menulis di papan tulis, dan konferensi video jarak jauh, yang memperkuat kolaborasi.
Parameter :
| Category | Specification |
|---|---|
| Model | SC02-I565A / SC02-I575A / SC02-I586A |
| Screen Size | SC02-I565A: 65-inchSC02-I575A: 75-inchSC02-I586A: 86-inch |
| Screen Type | SC02-I565A: VASC02-I575A: ADSSC02-I586A: IPS |
| Backlight | D-LED |
| Backlight Life | 50,000 hours (min./typ.) |
| Resolution | 3840 × 2160 (4K UHD) |
| Brightness | SC02-I565A: 350cd/m²SC02-I575A & I586A: 400cd/m² |
| Contrast Ratio | SC02-I565A: 4000:1SC02-I575A & I586A: 5000:1 |
| Response Time | 8ms (typ.) |
| Frequency | 60Hz |
| Aspect Ratio | 16:09 |
| Viewing Angle | 178°(H) / 178°(V) |
| Display Color | 1.07B (8bit + FRC) |
| Bonding Technology | Close to 0 gap between tempered glass and screen |
| Touch Technology | High Precision IR |
| Touch Points | Up to 50 |
| Touch Response Time | ≥2ms |
| Touch Accuracy | 1mm (center 90% touch area) |
| Anti-Glare | High transparency + Smooth + Anti-glare |
| Glass Hardness | 9H (Pencil Hardness), 7 (Mohs Hardness), Tempered Glass |
| Writing Height | ≤1mm |
| CPU | Quad-core A73 + Quad-core A53 |
| GPU | Mali-G52 MP8 |
| Memory (RAM) | 8GB (up to 16GB) |
| Storage (ROM) | 128GB (up to 256GB) |
| Operating System | Android 13 (standard), Windows 11 (optional) |
| Front Port | USB 3.0 ×2, Type-C (65W) ×1, Touch ×1, HDMI IN ×1 |
| Bottom Port | USB 2.0 ×1, DP IN ×1, Touch ×1, RS232 ×1, LAN ×2, SPDIF ×1 |
| Side Port | AUDIO IN ×1, AUDIO OUT ×1, Type-C OUT ×1, USB 3.0 ×2, Touch ×1, HDMI IN ×3, HDMI OUT ×1, Type-C (65W) ×1, OPS slot ×1 |
| Built-in Peripherals | WiFi 6 (802.11 ax/b/g/n/ac), Bluetooth 5.2 (2.1+EDR/4.2/5.2) |
| NFC | ISO / IEC 14443 Type A & B cards |
| Camera | 48 MP, Diagonal FOV 106°, Face Tracking & Sound Localization Supported |
| Microphone | 8-microphone array (up to 12m), 3D Noise Reduction, AEC & AGC Supported |
| Speaker | 2 × 8W + 2 × 18W |
| Operating Power | 100V ~ 240V AC, 50/60 Hz |
| Standby Power | <0.5W |
| Power Consumption (typ.) | SC02-I565A: 200WSC02-I575A: 300WSC02-I586A: 550W |
| Dimensions (W × H × D) | SC02-I565A: 1488 × 86 × 915 mmSC02-I575A: 1709 × 86 × 1039 mmSC02-I586A: 1957 × 98.5 × 1179 mm |
| Package Dimensions | SC02-I565A: 1628 × 208 × 1014 mmSC02-I575A: 1863 × 225 × 1163 mmSC02-I586A: 2110 × 225 × 1304 mm |
| Net Weight | SC02-I565A: 40 kgSC02-I575A: 52.5 kgSC02-I586A: 64 kg |
| Weight with Packaging | SC02-I565A: 52 kgSC02-I575A: 64 kgSC02-I586A: 84 kg |
| Case Material | Aluminium Alloy and Sheet Metal |
| Color | Blue Grey |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | 10°C to 60°C |
| Operating Humidity | 20% to 80% RH (Non-condensing) |
| Storage Humidity | 10% to 60% RH (Non-condensing) |
| Standard Accessories | Power Cable ×1, USB Cable ×1, HDMI Cable ×1, Remote Controller ×1, Wall Mount ×1, Stylus Pen ×2, Eraser ×1 |
| Optional Accessories | Movable Bracket, OPS Module, Wireless Dongle |
| Fonts Library | Bottom Port |
