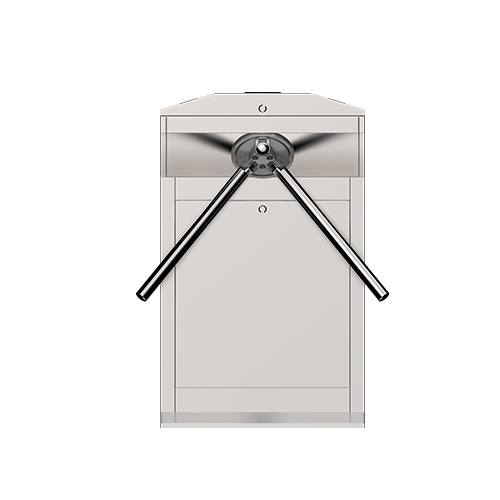

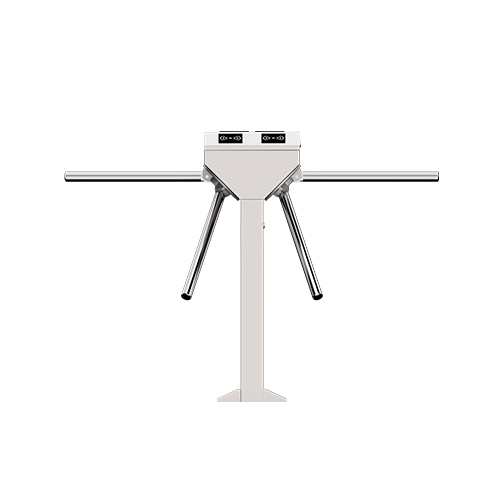

TS1200 Pro Series

Kategori: Entrance Control, Trippod Turnstile

Deskripsi

Deskripsi

TS1200 Pro Series menghadirkan kontrol akses yang andal melalui konstruksi stainless steel SUS304, yang dirancang untuk lingkungan dengan kebutuhan tinggi, mulai dari kawasan perkantoran hingga tempat hiburan. Turnstile tripod dual-lane dengan operasional dua arah (bi-directional) ini mampu melayani hingga 25 orang per menit menggunakan RFID atau 20 orang per menit melalui autentikasi sidik jari, sehingga ideal untuk area dengan lalu lintas pengguna yang padat. Selain itu, perangkat ini mendukung kontrol jarak jauh nirkabel (wireless remote control) untuk mengaktifkan fungsi drop arm, memungkinkan akses bebas dan evakuasi yang lebih efisien saat diperlukan.

Spesifikasi:

Specification	Details
Model Name	TS1200 Pro Series
Visual Indicator	LED Indicator: Steady Green = Open, Steady Red = Close
Audio Indicator	Internal Buzzer
Lane Type	Dual Lane (Supports Bi-directional Operation)
Lane Width	550 mm
Barrier Movement Type	Rotating (Tripod)
Tripod Length	500 mm
Footprint (L × W)	605 × 252 mm
Lid Material	SUS304 Stainless Steel
Lid Options	Streamlined (with Mount Options)
Authentication Methods	Fingerprint, RFID
Chassis Material	SUS304 Stainless Steel (T=1.2 mm)
Chassis Color	Silver / Gray
Barrier Material	SUS304 Stainless Steel
Motherboard Function	Tripod (Drop Arm) Duration, Access Mode Configuration
Motherboard Communication	Fire Alarm Port (Relay) ×1, RS485 Port ×1
Controller	C3-200 Plus (Recommended), InBio260 Pro Plus, or Third-Party Controller (Subject to Available Chassis Space)
Credential Options	Under-Mount RFID Reader: ProID10 / KR Series; Under-Mount Fingerprint Reader: FR200 / FR1500
Flow Rate	RFID: 25 Passengers/Minute; Fingerprint: 20 Passengers/Minute
Accessibility	Adults, Children (with Supervision), Persons with Disabilities (with Assistance)
Power Supply	110V / 220V AC ±10%, 50/60Hz; DC 12V
Power Rating	10VA (Standby), 40VA (Operation)
Fire Signal	Input for Voltage-Free Contact
Noise Level	< 60 dB
MTTR	< 60 Minutes
MCBF	2 Million Cycles
Weight	Net Weight: 65 kg; Gross Weight: 85 kg
Dimensions (L × W × H)	1374 × 606 × 992 mm
Packing Dimensions (L × W × H)	470 × 750 × 1100 mm
Operating Temperature	-20°C to 70°C
Operating Humidity	0% to 80% RH (Non-condensing)
Certifications	CE, FCC
Ingress Protection Rating	Tested to IPX4-Level Water Resistance (Self-Lab Test Result)
Supported Software	ZKBio CVAccess / ZKBio CVSecurity
Safety Levels	Auto-Locking Tripod Upon Authentication Failure; Drop Arm During Power-Off or Power Outage
Security Features	Anti-Tailgating
Product Delivery	Pre-Assembled
Application Environment	Indoor / Outdoor (Sheltered Areas)
Site Preparation	Flat and Level Finished Floor (Optional Base Plate Available)
Security Level	Medium
Emergency Mode	Supported (Drop Arm Function)
Packing Material	Wooden Box (Standard)
