- Deskripsi
Deskripsi

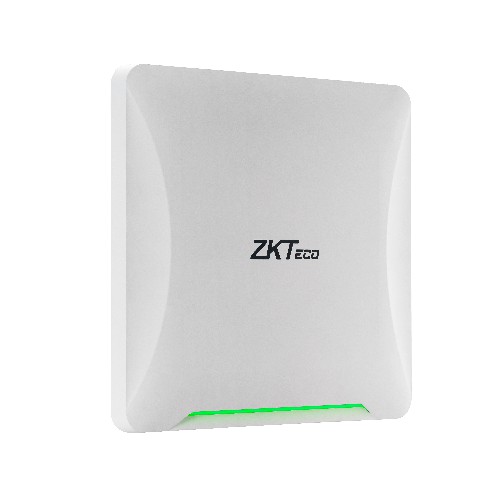

UHF5 Pro dan UHF10 Pro adalah pembaca UHF generasi ketiga ZKTeco, dengan kinerja yang jauh lebih stabil, jarak membaca yang lebih jauh, dan kecepatan pengenalan yang lebih cepat. Pembaca UHF dilengkapi dengan fungsi kartu UHF pasif, yang dapat digunakan secara luas dalam aplikasi Manajemen Kendaraan dan Manajemen Personalia. Produk ini juga memenuhi persyaratan teknologi CE, FCC.
Fitur:
- Support two working modes: Trigger to Read & Always Read (Default)
- Support different wiegand data output (Wiegand 26 by default)
- LED at the bottom of readers indicating the reading status(7-color indicators: red, green, blue, yellow, cyan, purple, white)
- Multiple communication modes, supporting Wiegand and RS485
- Protection level of IP66
Spesifikasi :
| Model | UHF5E Pro & UHF5F Pro | UHF10E Pro & UHF10F Pro |
| Reading Distance | 2 to 8 meters (Hand held test) (Actual scenario test is around 4m) | 10 to 20 meters (Hand-held test) (Actual scenario test is around 8m) |
| Antenna Gain | 9dBi | 12dBi |
| Dimensions (mm) | 308.5 * 308.5 * 67.5 | 445 * 445 * 67.5 |
| Weight | 1.8kg | 3kg |
| Power | 1.2 – 4.2W | 1.2 – 4.5W |
| Frequency | E: 865MHz – 868MHz | |
| F: 902MHz – 906MHz (adjustable) | ||
| Communication Interface | Wiegand; RS485; USB configuration parameters (Wiegand, RS485 requires one of two options) | |
| Interface Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C | |
| Working Mode | Read Always (Default) and Read by Trigger | |
| Output Power | 19dBm – 30dBm | |
| Protection Level | IP66 | |
| Working Voltage | DC 9-15V | |
| Working Temperature and Humidity | -20°C – 65°C; <85% | |
| Storage Temperature and Humidity | -20°C – 80°C; <85% | |
| RS485 Communication | Optional baud rate (9600, 19200, 38400, 57600, 115200); the default is 115200 | |
