Saturn-F1000
FBL6000 Pro adalah penghalang penutup dengan desain modular yang mewujudkan peralihan cepat antara pembaca yang berbeda dan penginstalan pembaca dapat diselesaikan hanya dengan pull-out dan plug-in.
- Deskripsi
Deskripsi

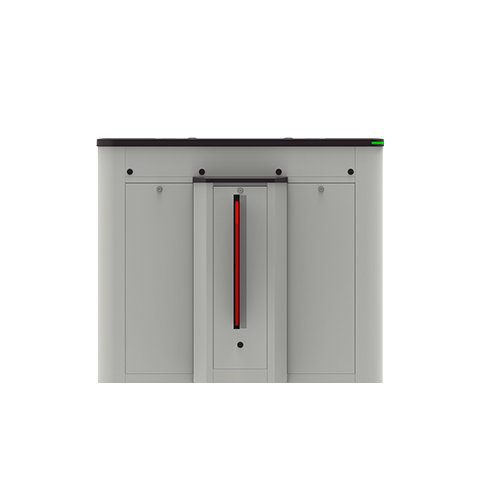

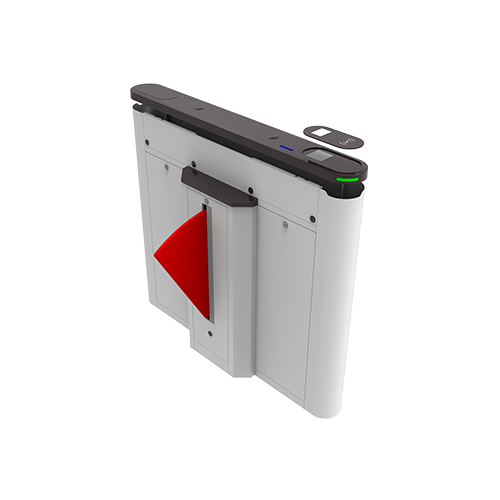

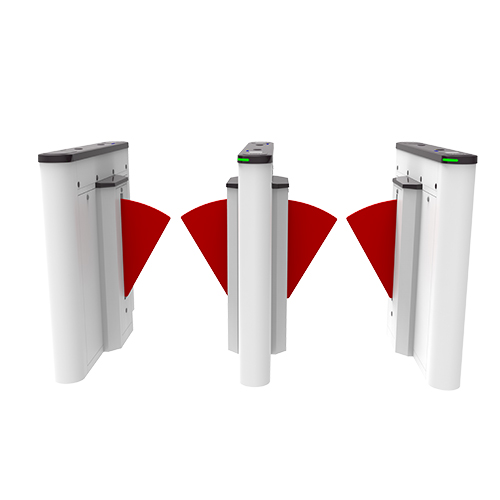

ZKTeco Saturn-F1000 adalah flap barrier akses kontrol dengan desain modern berbahan baja SPCC dan barrier polikarbonat yang kokoh. Menggunakan motor brushless DC, perangkat ini mampu membuka/menutup dalam <1 detik, dilengkapi fitur anti-jepit, anti-tailgating, serta mendukung autentikasi RFID, kode QR, dan pengenalan wajah. Dengan kapasitas hingga 30 orang/menit (RFID/QR) dan 15 orang/menit (wajah), Saturn-F1000 sangat ideal untuk area dengan lalu lintas tinggi, baik indoor maupun outdoor.
Parameter
| Spesifikasi | Detail |
|---|---|
| Model Name | Saturn-F1000 / Saturn-F1200 |
| Audio Indicator | Speaker |
| Visual Indicator | LED: Steady Blue = Standby; Steady Green = Normal Use; Steady Red = Barrier Close |
| Display | N/A |
| Lane Type | Saturn-F1000: Single Lane; Saturn-F1200: Dual flap barriers (with Saturn-F1000) |
| Lane Width | 550 mm |
| Lane Height | 1020 mm |

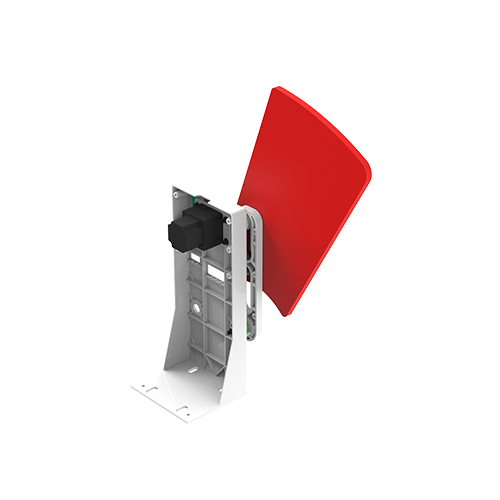

| Barrier Movement Type | Retractable flap barrier (Polycarbonate) |
| Motor | DC Brushless Motor |
| Movement Speed | < 1s per movement (open/close) |
| Movement Accuracy | N/A |
| Clutch | N/A |
| Cabinet Lid Material | Cold-rolled SPCC Steel (GB700) |
| Lid Material | Polycarbonate + 2.5D tempered glass |
| IR Sensors | 5 pairs |
| Motherboard Functions | System config, access mode config, anti-pinch, anti-tailgate, etc. |
| Motherboard Communication | Fire alarm port (relay) ×1; RS-485 port ×1 |
| Authentication Options (Lid) | Under-mount: RFID / QR Code; Top-mount (with pole): Face Recognition (ProFace X / SpeedFace V5L / Elite Pass) |
| Chassis Material | Cold-rolled SPCC Steel (GB700) |
| Chassis Colour | White |
| Controller | C3 / InBio series or third-party devices |
| Credential Options | RFID (ProID Series), QR Code (QR500), Face (ProFace X, Elite Pass, SpeedFace V5L) |
| Flow Rate | RFID: 30 ppl/min; QR: 30 ppl/min; Face: 15 ppl/min |
| Accessibility | Standard 550mm lane: Adult & Children |
| Power Supply | 110V / 220V AC @ 50–60 Hz |
| Power Rating | 10VA (Standby), 40VA (Operation) |
| Fire Signal | Input for voltage-free contact |
| Noise Level | < 60 dB |
| MTTR | < 60 minutes |
| MCBF | 5 million |
| Weight | Saturn-F1000: Gross 60kg / Net 50kg; Saturn-F1200: Gross 35kg / Net 30kg |
| Dimensions (L×W×H) | 1200 × 306 × 1020 mm |
| Dimensions w/ Packing | 1345 × 360 × 1100 mm |
| Operating Temperature | -20°C to 70°C |
| Operating Humidity | 20% – 85% RH (non-condensing) |
| Certifications | CE, FCC |
| Ingress Protection | IPX4 |
| Supported Software | ZKBio CVAccess / ZKBio CVSecurity (depends on controller) |
| Safety Features | IR safety detection, 24V DC logic, fire alarm fail-safe input, auto open on power-off |
| Security Features | Anti-intrusion, anti-tailgating, wrong-way alarm, auto-close when no passage |
| Product Delivery | Pre-assembled |
| Application Environment | Indoor / Outdoor |
| Site Preparation | Flat & level finished floor (optional base plate for unfinished floor) |
| Security Level | Medium |
| Emergency Mode | Supported (auto unlock) |
| Packing Material | Carton box |
