Z8516NFR-S
- Deskripsi
Deskripsi
Perekam Video Jaringan Seri BioSense (NVR) adalah perangkat penyimpanan back-end dari solusi pengawasan video cerdas baru yang dirilis oleh ZKTeco berdasarkan algoritme Pembelajaran Mendalam dan teknologi Visi Komputer.
Tertanam dengan perangkat keras CPU yang canggih dan kuat, dan sistem operasi grafis ZKTeco, Perekam Video Jaringan Seri BioSense adalah pasangan yang ideal untuk Kamera IP Seri BioSense front-end. NVR dapat mendukung perekaman terus menerus 24/7 semua video dan peristiwa alarm cerdas yang dihasilkan oleh Kamera IP front-end, dan menyimpannya dengan aman ke dalam hard drive menurut klasifikasi manusia & kendaraan. Setelah merekam video dan peristiwa alarm cerdas, NVR dapat memungkinkan pengguna untuk mengambil dan memutar bukti video target secara efisien, terutama untuk jenis target utama seperti manusia, kendaraan, dan objek. Fungsi ini memungkinkan pengguna untuk fokus pada klip video dan acara alarm yang paling efektif.
Perekam Video Jaringan BioSense dapat sangat membantu meningkatkan efisiensi dan keamanan seluruh sistem pengawasan video, dapat digunakan secara luas dalam berbagai skenario seperti sekolah pintar, kantor, kawasan industri, komunitas, keamanan publik, dll.
Parameters |
|
| Model | Z8516NFR-S |
| Sytem | |
| Main Processor | Multi-core embedded processor |
| Operating System | Embedded LINUX |
| Operation Interface | Web browser & Local GUI |
| VIDEO AND AUDIO | |
| Max IPC Video Input | 16CH |
| Two-way Talk | Support |
| Audio Compression | G.711u |
| Max Audio Input | 16CH by IPC |
| Third Party Camera Access | ONVIF & RTSP |
| LIVE VIEW | |
| Display Split | 1 / 4 / 9 / 16 CH |
| Resolution | 8MP(3840*2160) / 5MP(2592*1944) / 2MP(1920*1080) / 1.3MP(1280*1024) / 1Mp(1280*720) / D1(1024*768) |
| Live View Capability | 16CH@D1 (25 / 30fps) |
| RECORDING | |
| Video Compression | H.265+ / H.265 / H.264 |
| Recording Resolution | 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 |
| Max. Decoding Capability | 16CH@D1 (25 / 30fps) |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Stream Type | Video, Video & Audio |
| Bit Rate | Main Stream: 256Kbps ~ 8192Kbps Sub Stream: 50Kbps ~ 700Kbps |
| Storage Method | Local hard drive and network |
| Record Mode | Record Mode Schedule, Manual, Motion Detection, IVA Events Alarm |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| PLAYBACK AND BACKUP | |
| Playback Channel | 16CH synchronously playback |
| Search Mode | Time / Date, Alarm Types, IVA Search |
| Playback Function | Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast Play, Slow Play, Single Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen |
| Backup Mode | USB Device / Network Remote |
| INTELLIGENT VIDEO ANALYTICS | |
| IVA by Camera | Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Object Lost / Left |
| Local IVA Functions displaying | Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Counting Statistics, Object Lost / Left |
| IVA by Device(Number of Channels) | Up to IPC |
| IVA by Camera (Number of Channels) | 16 |
| IVA ALARM | |
| Smart IVA Alarm | Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Counting Statistics, Object Lost / Left |
| Regular Detection | Motion Detection / Video Shelter / Video Loss |
| Anomaly Alarm | HDD Full, No HDD, S.M.A.R.T error, Network disconnected, IP conflict |
| Alarm Linkage Actions | Preview, Recording, Snapshot,Buzzer, Preset, Email, Tour, Upload center |
| Smart Search | Support smart search out target video by human and vehicle classification filtering |
| NETWORK | |
| Network Protocol | TCP / IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL/TLS, PPPoE, SNMP, WebSocket, P2P |
| Max. Online Users | 5 |
| Web Browser | Google Chrome / Microsoft Edge / Firefox / Safari / Opera |
| Operation System | Windows |
| Management Platform | ZKBio CVSecurity / ZKBio Access IVS / AntarVis 2.0 |
| Mobile Application | AntarView Pro+ (iOS & Android) |
| P2P Cloud Service | Support |
| Interoperability | ONVIF Profile S / G, SDK, CGI, API |

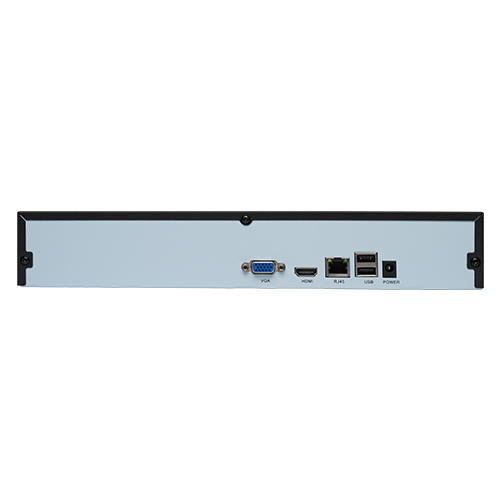

| STORAGE & AUXILIARY INTERFACE | |
| SATA Ports | 2 SATA Port, up to 8 TB capacity each |
| eSATA | N/A |
| Raid 0 /1 / 5 / 6 / 10 | N/A |
| HDMI | 1*HDMI (4K) |
| VGA | 1*VGA (1920*1080 / 60Hz, 1280*1024 / 60Hz) |
| Network Interface | 1 RJ-45 Port (10/100Mbps) |
| PoE Ports | N/A |
| Standard | N/A |
| USB | 3*USB 2.0 |
| Audio Input/Output | N/A |
| Alarm Input/Output | N/A |
| RS-485 | Support |
| RS-232 | N/A |
| POWER | |
| Power Supply | DC 12V/3A |
| Power Consumption | ≦ 24W (without HDD) |
| GENERAL | |
| Casing | 1.5U |
| Operating Temperature | -10°C to 55°C / 14°F to 131°F |
| Operating Humidity | 0% to 90% RH (Non-condensing) |
| Storage Humidity | 30% to 80% RH (Non-condensing) |
| Operating Altitude | 3,000 m (9,842.52 ft) |
| Installation | Desktop / Cabinet mount |
| Dimensions(L*W*H) | 325 * 246 * 50 (mm) |
| Net Weight | 3kg (without HDD) |
| Gross Weight | 3.5kg (without HDD) |
| Certifications | ISO14001, ISO9001, CE, FCC |
