ZK-IWBE Series
Formulir Permintaan
Terima kasih atas ketertarikan Anda. Setelah melengkapi informasi berikut, ZKTeco., Indonesia akan segera menghubungi Anda.
Dengan mengisi formulir ini, saya menyatakan bahwa saya telah membaca, memahami dan menyetujui informasi penting sebagai berikut :
- Saya setuju untuk memberikan data dan informasi di atas kepada ZKTeco., Indonesia.
- Saya setuju ZKTeco., Indonesia. menghubungi saya untuk menawarkan produk melalui email atau melalui telepon.
- Saya memahami informasi di atas disampaikan hanya untuk keperluan penawaran produk dengan ZKTeco., Indonesia sesuai dengan Kebijakan Privasi.
- Deskripsi
Deskripsi

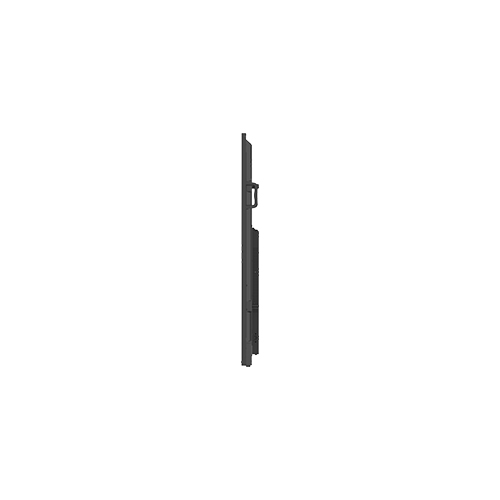

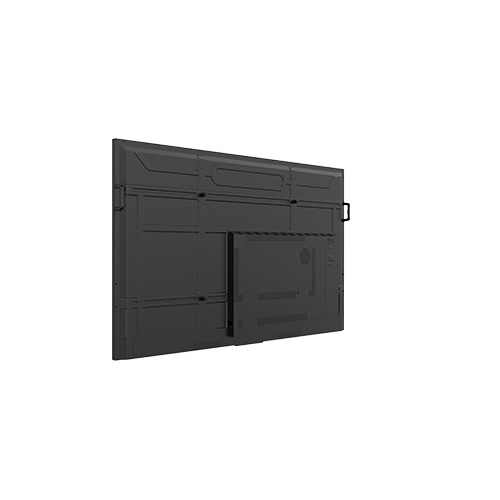

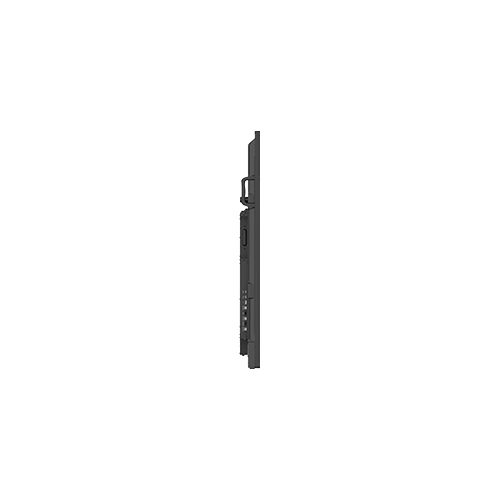

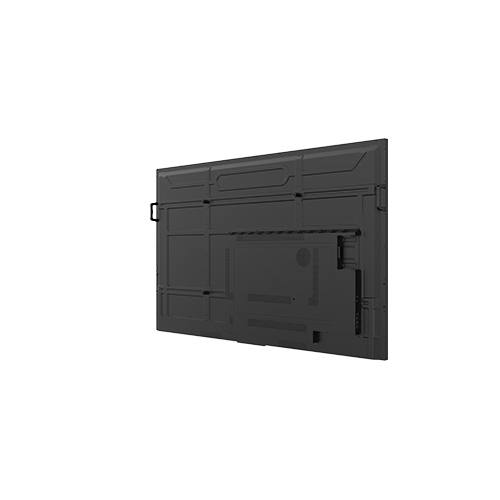

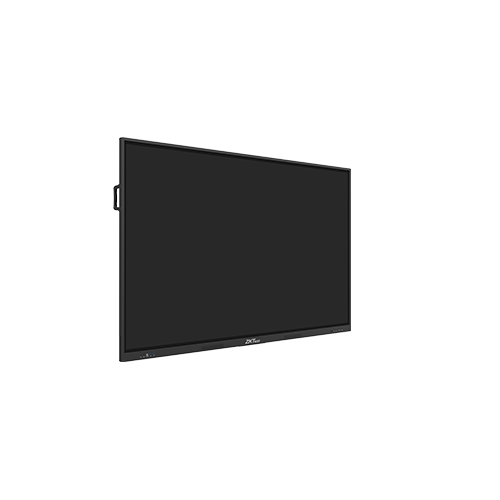

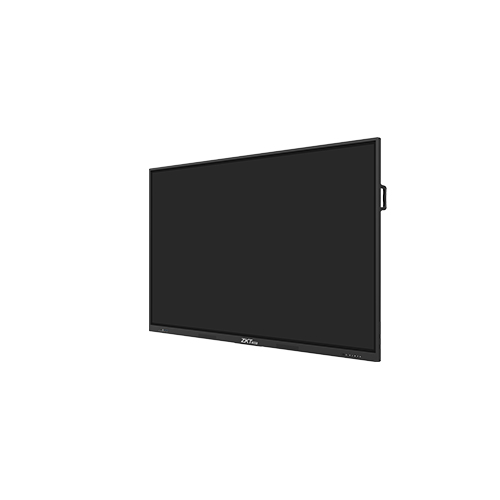

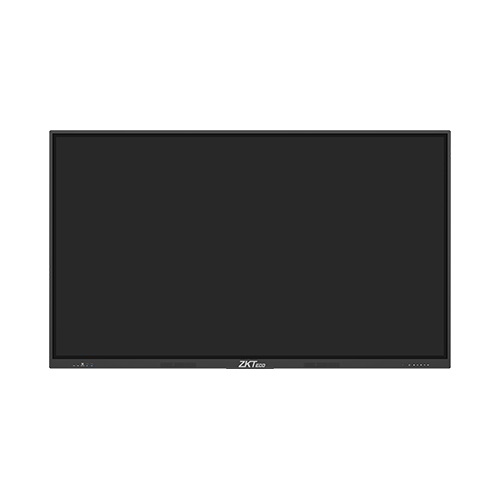

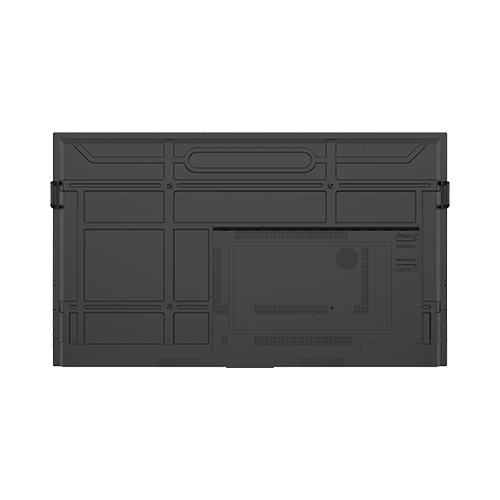

Seri ZK-IWBE adalah papan tulis interaktif pintar 4K. Ini memiliki tiga model, termasuk ZK-IWB65BE, ZK-IWB75BE, ZK-IWB86BE. Fitur utamanya adalah sebagai berikut:
* Android 13.0 dan Windows11. 0 (Opsional)
* Tampilan UHD 4K
* CPU: Inti empat inti ARM Cortex A55
* RAM / ROM: 4GB / 32GB
Parameter :
| Model Name | ZK-IWB65BE; ZK-IWB75BE; ZK-IWB86BE |
| LCD Screen | ZK-IWB65BE: 65-inch ZK-IWB65BE: 75-inch ZK-IWB65BE: 86-inch |
| Screen Type | D-LED (Backlight) |
| DISPLAY PARAMETERS | |
| Resolution | 400cd/m² (typ.) |
| Contrast Ratio | 1200:1 (typ.) |
| Response Time | ZK-IWB65BE: 6ms (typ.) ZK-IWB75BE: 8ms (typ.) ZK-IWB86BE: 8ms (typ.) |
| Frequency | 60Hz |
| Aspect Ratio | 16:9 |
| View Angle | 178°(H) / 178°(V) |
| Display Colors | 1.07B(8bit+FRC) |
| Bonding Technology |  The gap between tempered glass and screen is close to 0 |
| POWER PARAMETERS | |
| Power Consumption (Without OPS) | ZK-IWB65BE: 220W ZK-IWB75BE: 300W ZK-IWB86BE: 380W |
| Working Voltage | AC 176V to 264V, 50/60Hz |
| Power Type | AC Power |
| Standby Consumption | <0.5W |
| TOUCH PARAMETERS | |
| Touch Technology | Advanced infrared touch technology |
| Anti-Glare | High transparent + Smooth + Anti-glare |
| Tempered Glass | Toughened Glass 3.2mm Grade: MoHS 7 |
| Touch Points | Android: 20 Multi-touch points Windows: 40 Multi-touch points |
| Input | Stylus / Finger / Other solid(soft tip) object |
| Accuracy | ±1mm (middle 0ver 90% area) |
| Writing Height | 3.0 mm |
| Resolution | 32768×32768 |
| Response Time | <5ms |
| Minimum Touch Object | Single touch: ≥1.6mm Multiple touch: ≥2.0mm |
| Support Pen Protocol | Windows Whiteboard 2.0 support thick and thin pens Automatic identification |
| Recognition Level Of Thick And Thin Pens | 4 Grades :3mm / 8mm / 12mm fine eraser / 25mm eraser |
| CONNECTIVITY | |
| Front Port | USB 3.0*2, Type-C*1, Touch-USB*1, HDMI2.0*1 |
| Bottom Port | LAN IN/OUT*2, RS232 IN*1, MIC IN*1, AUDIO OUT*1, SPDIF OUT*1 |
| Side Port | Touch-USB*2, HDMI IN*2, USB 2.0*1, USB 3.0*1 |
| MAINBOARD | |
| Solution | T982 |
| CPU | Architecture: Quad core ARM Cortex A55 Operating frequency < 1.8GHz |
| OS | Android 13.0 |
| GPU | MaliG52 2EE MC1@550MHz |
| Bottom Port | AUDIO IN*1, VGA*1, LAN IN/ OUT*1, RS232*1, MIC IN*1, HDMI OUT*1, AUDIO OUT*1, SPDIF*2 |
| RAM | 4GB |
| ROM | 32GB |
| OPS (Optional) | Windows11.0 |
| WI-FI MODULE | |
| Main Chipset | Wi-Fi+BT MT7663BU (IEEE 802.11a/b/g/n/ac) Bluetooth v5.1 2T2R 2.4GHz / 5GHz |
| Operating Frequency | 2.4GHz / 5GHz |
| Wi-Fi Standard | IEEE 802.11 ax / b / g / n / ac |
| Bluetooth | 2.1+EDR / 4.2 / 5.1 |
| SPEAKER | |
| Output Power | 8Ω /16W×2: 200Hz – 20kHz |
| PHYSICAL PARAMETERS | |
| Product Dimensions (L*W*H) | ZK-IWB65BE: 1482.1×87.7×897.4 (mm) ZK-IWB75BE: 1716.5×87.7×1031.8 (mm) ZK-IWB86BE: 1967.8 x87.7.x1169.9 (mm) |
| Package Dimensions (L*W*H) | ZK-IWB65BE: 1640×185×1010 (mm) ZK-IWB75BE: 1860×185×1125 (mm) ZK-IWB86BE: 2095×185×1265 (mm) |
| Net Weight | ZK-IWB65BE: 38±1.5 kg ZK-IWB75BE: 52.5±1.5kg ZK-IWB86BE: 65.5±1.5kg |
| Weight with Packaging | ZK-IWB65BE: 46±1.5 kg ZK-IWB75BE: 61.5±1.5kg ZK-IWB86BE: 77±1.5kg |
| Case Material | Aluminium Alloy and Sheet Metal |
| Color | Black |
| GENERAL ENVIRONMENT | |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | 10°C to 60°C |
| Operating Humidity | 20% to 80% RH (Non-condensing) |
| Storage Humidity | 10% to 60% RH (Non-condensing) |
Data Sheet / User Manual :
