FaceDepot 4A

FaceDepot 4A

Kategori:

Deskripsi

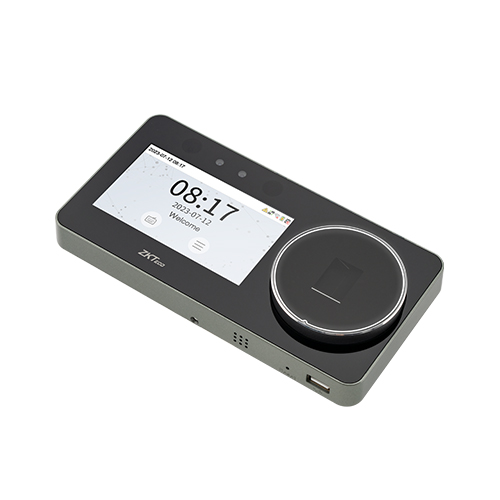

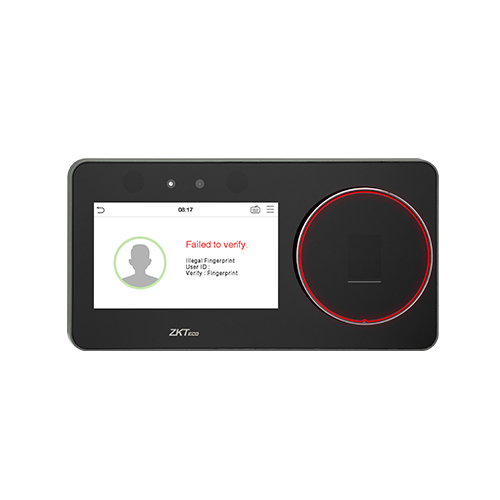

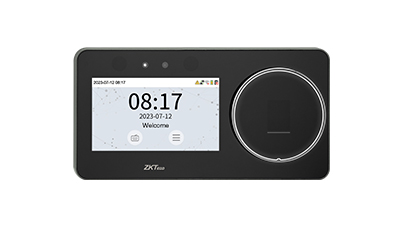

Face Depot 4A adalah terminal waktu dan kehadiran biometrik hibrid berbasis Linux yang menampilkan teknologi Pengenalan Wajah Cahaya Tampak ZKTeco yang inovatif.

Face Depot 4A menggunakan algoritme pembelajaran mendalam untuk melakukan pengenalan wajah dengan cahaya tampak dari jarak 0,3 hingga 2 meter, bahkan dalam kondisi gelap atau kurang cahaya. Selain itu, terminal meningkatkan toleransi sudut pose dan tindakan anti spoofing.

Selain itu, Face Depot 4A digabungkan dengan teknologi otentikasi biometrik Zkteco, berbagai metode verifikasi, dan konektivitas Wi-Fi / 4G serbaguna untuk memenuhi beragam kebutuhan pelanggan, menawarkan verifikasi yang akurat.

Spesifikasi :

Model FaceDepot 4A
Display 4.3″@ TFT Color Touch LED Screen (480*800)
Camera Binocular Camera @ 2MP WDR
Operating System Linux
Hardware CPU Quad Core@1.2GHz
RAM 1GB; ROM: 8GB
Speaker 8 ohm @1 W
Supplement Light No
Fingerprint Sensor In-Glass Fingerprint
Model FaceDepot 4A
Biometric Authentications Fingerprint / Face / Card / Password (Virtual Keypad)
Fingerprint Capacity 6,000 (1:N) (Standard)
User Capacity 10,000 (1:N) (Standard)
Face Capacity 6,000 (1:N) (Standard)
Card Capacity 10,000 (1:N) (Optional)
Transaction Capacity 100,000 (1:N) (Optional for Capacity Expansion: 200,000 )
Max. User Password Length 8 Digits
Biometric Verification Speed less than 0.35 second (Facial Recognition)
less than 0.5 second (Fingerprint Recognition)
Touchless Biometric Recognition Distance 30cm to 200cm @ Face
False Acceptance Rate (FAR) % FAR ≤ 0.01% (Facial Recognition)
FAR≤0.0001% (Fingerprint)
False Rejection Rate (FRR) % FRR ≤ 0.02% (Facial Recognition)
FRR≤0.01% (Fingerprint)
Biometric Algorithm ZKFace V6.0
ZKFingerprint
Card Type ID Card@125 kHz (Optional)
HID Prox@125 kHz (Optional)
IC Card@13.56 MHz (Optional)
Optional Multi-Tech Module:
Module1: ID & IC & DESFire EV1/EV2; (125 kHz & 13.56 MHz Dual Frequency)
Communication TCP / IP*1
Wi-Fi (IEEE802.11a / b / g / n / ac) @ 2.4 GHz / 5 GHz (Coming soon)
Wiegand (Input & Output)*1
RS485: ZKTeco RS485*1
USB: Type A (USB Drive Only)*1
Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm Output*1
Mobile Communication LTE FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B26 / B28
LTE TDD: B38 / B39 / B40 / B41
UMTS: B1 / B2 / B4 / B5 / B6 / B8 / B19
GSM: B2 / B3 / B5 / B8
Standard Functions WorkCode, ADMS, DST, T9 Keyboard (Input), Photo Capture, Event Photo Capture,
14-digit User ID, Schedule Bell, Record Query, Tamper Switch Alarm, Photo ID, Multiple Verification Methods, External Printer, HTTPs / SSH Backend Access, 12V Output
Optional Functions Wi-Fi, 4G, Backup Battery, PoE
Power Supply DC 12V 3A
PoE: IEEE 802.3af
Backup Battery
Backup Battery (Coming soon) 2000 mAh (Lithium Battery)
Max. Operating Hours: 2 Hours
Max. Standby Hours: 2 Hours
Charging Time: 2.5 to 3 Hours
Operating Temperature 0°C to 45°C
Operating Humidity 20% to 80% RH (Non-condensing)
Dimensions (H*W*D) 193.00 mm*100.00 mm*32.40 mm (L*W*H)
Gross Weight 0.447 Kg
Net Weight 0.402 Kg
Supported Software ZKBioTime / ZKBio CVAccess (T&A Module)
Installation Wall-mount
Certifications ISO14001, ISO9001, CE, FCC, RoHS
