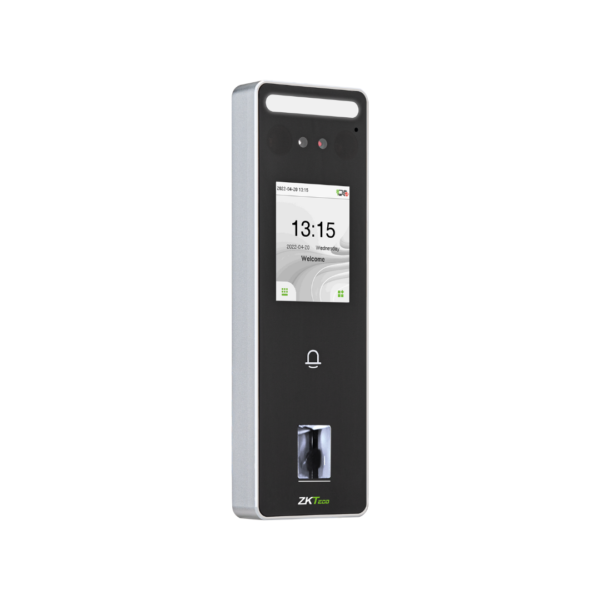

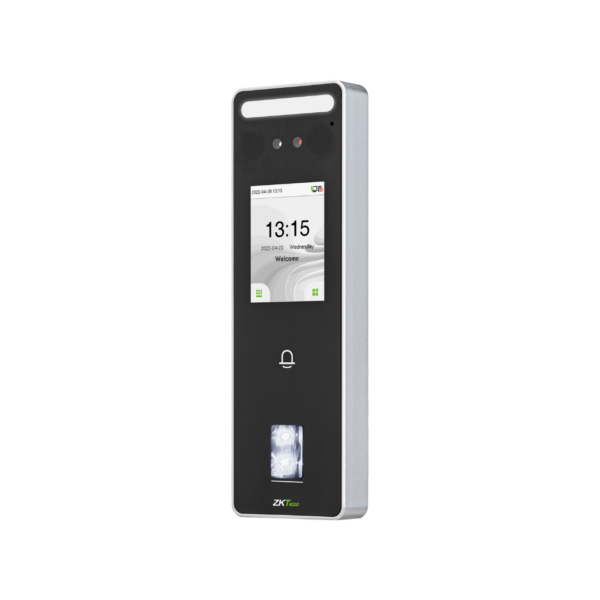

SpeedFace-V3L Series
Starter Facial Recognition Terminal with 5-inch Touch Display.
- Deskripsi
Deskripsi
Perangkat seri SpeedFace-V3L adalah perangkat yang berdiri sendiri dengan visible light face akses kontrol. SpeedFace-V3Lmendukung pengenalan wajah dan sidik jari. Sementara SpeedFace-V3L [QR] mendukung modul kode QR, dan SpeedFace-V3L[RFID] mendukung verifikasi RFID.
Spesifikasi :
| Display | 2.4-inch touch Screen | |
| Biometric | SpeedFace-V3L : Face/Fingerprint SpeedFace-V3L[QR] : Face Only |
|
| QR Code | SpeedFace-V3L[QR] : QR code, Bar code,PDF417(Optional),Datamatrix(Optional),MicroPDF417(Optional),Aztec(Optional) | |
| RFID | SpeedFace-V3L : ID card(Optional),IC card(Optional) SpeedFace-V3L[QR] : ID card(Optional),IC card(Optional) SpeedFace-V3L[RFID] : ID card(Standard),IC card(Optional) |
|
| Card Capacity | 3,000 | |
| User Capacity | 3,000 | |
| Face Capacity | SpeedFace-V3L : 500 SpeedFace-V3L[QR] : 500 |
|
| Fingerprint Capacity | 3,000 | |
| Logs Capacity | 200,000 | |
| Facial Recognition Algorithm | ZKFace 3.5 | |
| Facial Recognition Speed | <1s | |
| Facial Recognition Distance | 0.5m to 2m | |
| Communication | TCP/IP,WiFi(Optional),Wiegand Input/Output,RS485 | |
| Operation System | Linux | |
| Standard Functions | ADMS, DST, Camera, 14-digit User ID, Access Levels,Groups, Holidays, Anti passback, Record Query, Tamper Switch Alarm, Multiple Anti-Passback |
|
| Hardware | 1.2GHz Dual Core CPU, 256MB RAM/512MB Flash, 1MP Binocular Camera Adjustable LED Fill Light |
|
| Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input | |
| Power Supply | 12V 3A | |
| Ingress Protection Rating | IP65 | |
| Operating Temperature | -5°C to 45°C | |
| Operating Humidity | 10% to 90% RH | |
| Dimensions(L*W*D) | 185*58.5*20mm | |
| Supported Softwares | ZKBio Access | |
Data Sheet / User Manual
