ES-852B31C-S2-C-MI-S
Formulir Permintaan
Terima kasih atas ketertarikan Anda. Setelah melengkapi informasi berikut, ZKTeco., Indonesia akan segera menghubungi Anda.
Dengan mengisi formulir ini, saya menyatakan bahwa saya telah membaca, memahami dan menyetujui informasi penting sebagai berikut :
- Saya setuju untuk memberikan data dan informasi di atas kepada ZKTeco., Indonesia.
- Saya setuju ZKTeco., Indonesia. menghubungi saya untuk menawarkan produk melalui email atau melalui telepon.
- Saya memahami informasi di atas disampaikan hanya untuk keperluan penawaran produk dengan ZKTeco., Indonesia sesuai dengan Kebijakan Privasi.
- Deskripsi
Deskripsi

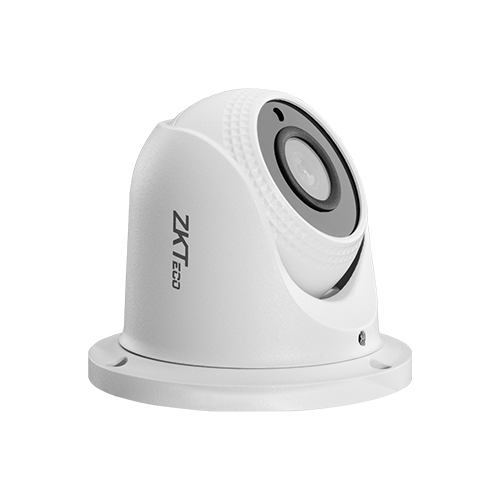

ZKBio Sense Entry Series IP Camera adalah kamera front-end tingkat pemula yang secara khusus difokuskan untuk pasar channel.
Sebagai bagian dari Seri ZKBio Sense, ZKBio Sense Entry Series IP Camera juga merupakan solusi pengawasan video cerdas yang berbasis pada algoritma Deep-Learning dan teknologi Computer Vision milik ZKTeco.
Dengan menggunakan CPU yang canggih dan kuat, ditambah dengan algoritma klasifikasi cerdas yang tersemat, ZKBio Sense Entry IP Camera dapat mendeteksi dan mengenali target utama secara akurat: manusia, sekaligus secara efektif menyaring objek lain yang tidak relevan seperti hewan, daun, bayangan, dan hujan, untuk mengurangi alarm palsu.
ZKBio Sense Entry IP Camera merupakan solusi video cerdas yang hemat biaya dengan keseimbangan yang baik antara ekonomi, efisiensi, dan keamanan bagi seluruh sistem pengawasan video, serta dapat digunakan secara luas di berbagai skenario seperti sekolah pintar, kantor, kawasan industri, komunitas, keamanan publik, dan lain sebagainya.
Parameters:
| Specification | Details |
|---|---|
| Model | ES-852B31C-S2-C-MI-S |
| Image Sensor | 1/2.9” 2 MP CMOS Sensor |
| Max. Resolution | 1920(H) × 1080(V) |
| ROM / RAM | 128 MB / 128 MB |
| Scanning System | Progressive Scan |
| Electronic Shutter Speed | 1/5 s to 1/100,000 s |
| Minimum Illumination | 0.001Lux@F1.6 (AGC on, Color) |
| S/N Ratio | ≥50 dB |
| White Light Range | 30 m |
| Illuminator Control | Auto / Manual |
| Illuminator Number | 2 × White Light LEDs |
| Smart IR | Not Available |
| Angle Adjustment | Pan: 0–360°, Tilt: 0–90°, Rotation: 0–360° |
| TV System | PAL / NTSC |
| Image Settings | Brightness, Contrast, Saturation, Hue, Sharpness, AGC, White Balance, Gamma, Backlight (adjustable via software/web) |
| Software Reset | Supported |
| General Functions | Heartbeat, Mirror, Privacy Mask, Log, Password Reset |
| Lens Type / Mount | Fixed / M12 (Board-in) |
| Focal Length / Aperture | 2.8 mm / F1.6 |
| Optical Zoom / Iris | Not Available / Fixed |
| Field of View (H/V/D) | 113° / 60° / 130° |
| Close Focus Distance | 1.5 m |
| DORI (Detect / Observe / Recognize / Identify) | 43 m / 16 m / 9 m / 4 m |
| Video Compression | H.265 / H.264 |
| Resolutions | 1080P / 1.3MP / 720P |
| Frame Rates (Main/Sub) | 25/30 fps |
| Stream Capability | Dual Stream |
| Bitrate Control / Video Bitrate | CBR / VBR; H.264: 896 Kbps–6 Mbps; H.265: 1024 Kbps–6 Mbps |
| Day/Night Mode | Auto (ICR) / Color / B&W |
| BLC / HLC / WDR | Supported / Supported / DWDR |
| Scene Self-Adaptation | Supported |
| White Balance | Auto, Custom, Locked, Incandescent, Warm Light, Natural, Fluorescent |
| Gain Control | Low, Mid Low, Mid, Mid High, High |
| Noise Reduction | 2D / 3D NR |
| Motion Detection | Smart / Ordinary (4 areas) |
| ROI | 4 Areas, Level 1–6 |
| Defog | Not Available |
| Mirror / Image Rotation | Supported / 0°, 90°, 180°, 270°, H/V |
| Privacy Masking | 4 Areas |
| Corridor Mode / Digital Zoom | Supported / Supported |
| Anti-Flicker | Supported |
| Audio (Mic / Speaker) | Built-in Mic Supported / No Speaker |
| Audio Compression | G.711 u-law |
| Noise Filtering / Audio Sample Rate | Supported / 8 to 48 kHz |
| Audio Bitrate | 64 Kbps |
| IVA (Smart Detection) | Line Crossing, Area Detection, Smart Motion (Human Classification) |
| Intelligent Search | Fast Retrieval by Human Classification |
| Face Detection & Template | Not Available |
| Basic Alarm Events | Network Disconnection, IP Conflict, Illegal Access, Motion Detection, Video Tampering |
| Smart Alarm Events | Line Crossing, Area Detection, Smart Motion Detection |
| Alarm Linkage | Notify Center, Trigger Recording/Capture, Email |
| Live View Channels | Up to 15 |
| Network Port | 1 × RJ45 10/100M |
| Protocols | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL/TLS, PPPoE, SNMP, WebSocket |
| Interoperability | ONVIF Profile S / T |
| Users | Up to 256 (Admin / Operator / Guest) |
| Network Storage | FTP |
| Web Browsers | IE, Edge, Firefox, Chrome, Safari |
| Management Software | AntarVis 2.0, ZKBioSecurity IVS, ZKBioAccess IVS, ZKBio CVSecurity, ZKBio CVAccess |
| Mobile App | AntarView Pro+ (iOS & Android) |
| P2P Cloud Service | Supported |
| SDK / API | Supported |
| Audio/Alarm I/O / USB / Reset / RS485 / ANR | Not Available |
| Power Supply | PoE (IEEE802.3af Class 3), DC 12V ±10% |
| Power Consumption | ≤3W (DC), 4.5W (PoE) |
| Power Connector | Ø 5.5 mm coaxial plug |
| Casing Material | Aluminum Alloy |
| Dimensions / Weight | 107 × 107 mm / 0.42 kg (net), 0.60 kg (gross) |
| Operating Temp / Humidity | –30°C to +60°C / ≤95% RH (non-condensing) |
| Storage Conditions | Same as above |
| Ingress Protection | IP67 |
| Certifications | ISO9001, ISO14001, CE, FCC |
Data Sheet / User Manual :
