- Deskripsi
Deskripsi

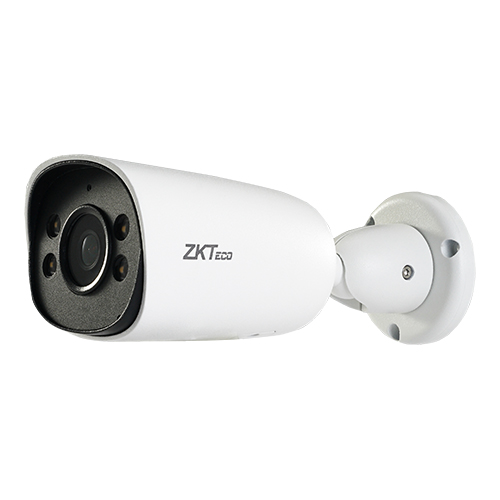

Seri IP Camera BioSense Lite merupakan bagian front-end dari solusi video surveillance cerdas yang dikembangkan oleh ZKTeco dengan menggunakan algoritma Deep Learning dan teknologi Computer Vision.
Parameters:
| Specification | Details |
|---|---|
| Model | BS-852E11T-S3-C-MI-SE |
| Image Sensor | 1/2.9” 2MP CMOS |
| Max. Resolution | 1920(H) × 1080(V) |
| ROM | 128MB |
| RAM | 256MB |
| Scanning System | Progressive Scan |
| Electronic Shutter Speed | 1/5s to 1/100,000s |
| Min. Illumination | 0.001 Lux @ F1.0 (AGC on, Color) |
| S/N Ratio | >52dB |
| White Light Range | 20m |
| Illuminator On/Off Control | Auto / Manual |
| Illuminator Number | 4 × White Light LED |
| Smart IR | N/A |
| Angle Adjustment for Installation | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| TV System | PAL/NTSC |
| Image Settings | Trigger mode, Brightness, Contrast, Saturation, Hue, Sharpness, AGC, White balance, Gamma, Backlight mode; adjustable by platform software or web browser |
| Software Reset Default | Support |
| General Function | Heartbeat, Mirror, Privacy mask, Log, Password reset |
| Lens Type | Fixed Lens |
| Lens Mount | M12 |
| Mount Type | Board-in |
| Focal Length | 2.8mm |
| Max. Aperture | F1.0 |
| Optical Zoom | N/A |
| Field of View | FOV: 118° Horizontal: 88° Vertical: 45° Diagonal: 105° |
| Iris Type | Fixed |
| Close Focus Distance | 1.5m |
| DORI Distance | Lens: 2.8mm Detect: 43m Observe: 16m Recognize: 9m Identify: 4m |
| Video Compression | H.265 / H.264 |
| Video Stream Capability | Triple streams |
| Recording Resolution | 1080P (1920 × 1080) / 1.3MP (1280 × 960) / 720P (1280 × 720) / D1 (704 × 576) / VGA (640 × 480) / Q720 (640 × 360) |
| Max. Video Frame Rate | Main stream: 50Hz (PAL): 25fps; 60Hz (NTSC): 30fps Sub stream: 50Hz (PAL): 25fps; 60Hz (NTSC): 30fps Third stream: 50Hz (PAL): 25fps; 60Hz (NTSC): 30fps |
| Video Bit Rate | H.264: 896kbps–6Mbps H.265: 1024Kbps–6Mbps |
| Day / Night | Auto (ICR) / Color / B&W |
| BLC | Support |
| HLC | Support |
| WDR | DWDR |
| Scene Self-adaptation | Support |
| White Balance | Auto, Custom, Locked, Incandescent lamp, Warm light, Natural light, Fluorescent lamp |
| Gain Control | Low, Mid low, Mid, Mid high, High |
| Noise Reduction | 2D / 3D NR |
| Motion Detection | Smart / Ordinary (4 areas) |
| Region of Interest (ROI) | Support (4 areas, Level 1–6) |
| Defog | N/A |
| Mirror | Support |
| Image Rotation | 0° / 90° / 180° / 270° / Horizontal / Vertical |
| Privacy Masking | 4 areas |
| Corridor Mode | Support |
| Digital Zoom | Support |
| Anti-flicker | N/A |
| Built-in MIC | Support |
| Audio Compression | G.711ulaw |
| Environment Noise Filtering | Support |
| Audio Sampling Rate | 8kHz / 16kHz / 32kHz / 44.1kHz / 48kHz |
| Audio Bit Rate | 64 Kbps (G.711ulaw) |
| IVA (Perimeter Protection) | Line Crossing, Area Detection, Smart Motion Detection (human and vehicle target classification) |
| Intelligent Video | Support fast retrieval by human & vehicle target classification, playback and backup |
| Face Detection | N/A |
| Intelligent Search | Support fast retrieval by human & vehicle target classification |
| Face Templates | N/A |
| Face Quality Filtering | N/A |
| Face Detected Per Frame | N/A |
| Detection Area | N/A |
| Detected Face Size | N/A |
| Capture Response | N/A |
| Basic Alarm Event | SD card error, Network disconnection, IP conflict, Illegal access, Motion detection, Video tampering, External alarm |
| Smart Alarm Event | Line Crossing, Area Detection, Smart Motion Detection (human and vehicle target classification) |
| Alarm Linkage Actions | Upload to memory card/FTP, Notify surveillance center, trigger recording, trigger capture, send email |
| Simultaneous Live View | Up to 15 channels |
| Network | 1 × RJ45 10M/100M self-adaptive Ethernet port |
| SDK and API | Support SDK, API and ONVIF |
| Cyber Security | Video encryption, firmware encryption, configuration encryption, account lockout, security logs, IP filtering, trusted boot, trusted execution, trusted upgrade, password protection, complicated password, basic and digest authentication for HTTP/HTTPS, TLS, IP address filter, Security Audit Log |
| Protocol | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL/TLS, PPPoE, SNMP, WebSocket |
| Interoperability | ONVIF Profile S/T/G |
| User / Host | Up to 256 users; 3 user levels: admin, operator and guest |
| Network Storage | FTP, Micro SD card, Auto Network Replenishment (ANR) |
| Web Browser | IE / Edge / Firefox / Chrome / Safari |
| Management Software | AntarVis 2.0 / ZKBioSecurity IVS / ZKBioAccess IVS / ZKBio CVSecurity / ZKBio CVAccess |
| Mobile Application | AntarView Pro+ (iOS & Android) |
| On-Board Storage | Micro-SD Card Slot (support max. 256GB) |
| Operating System | Windows |
| P2P Cloud Service | Support |
| Audio Input | N/A |
| Audio Output | N/A |
| Alarm Input | N/A |
| Alarm Output | N/A |
| Reset Button | Support |
| ANR | Support |
| USB | N/A |
| RS485 | N/A |
| Power Consumption | Basic ≤3W (12VDC); 4.5W (PoE) |
| Power Supply | PoE (IEEE802.3af, Class 3), DC 12V ±10%, reverse polarity protection |
| Power Interface | Ø5.5mm coaxial power plug |
| Casing Material | Aluminium Alloy |
| Dimensions | 180.80 × 75.30 × 66.20mm |
| Net Weight | 0.40kg |
| Gross Weight | 0.52kg |
| Operating Conditions | –30°C to +60°C (–22°F to +140°F) / Humidity ≤95% (non-condensing) |
| Storage Conditions | –30°C to +60°C (–22°F to +140°F) / Humidity ≤95% (non-condensing) |
| Protection Grade | IP67 |
| Certificates | ISO9001, ISO14001, CE, FCC |
